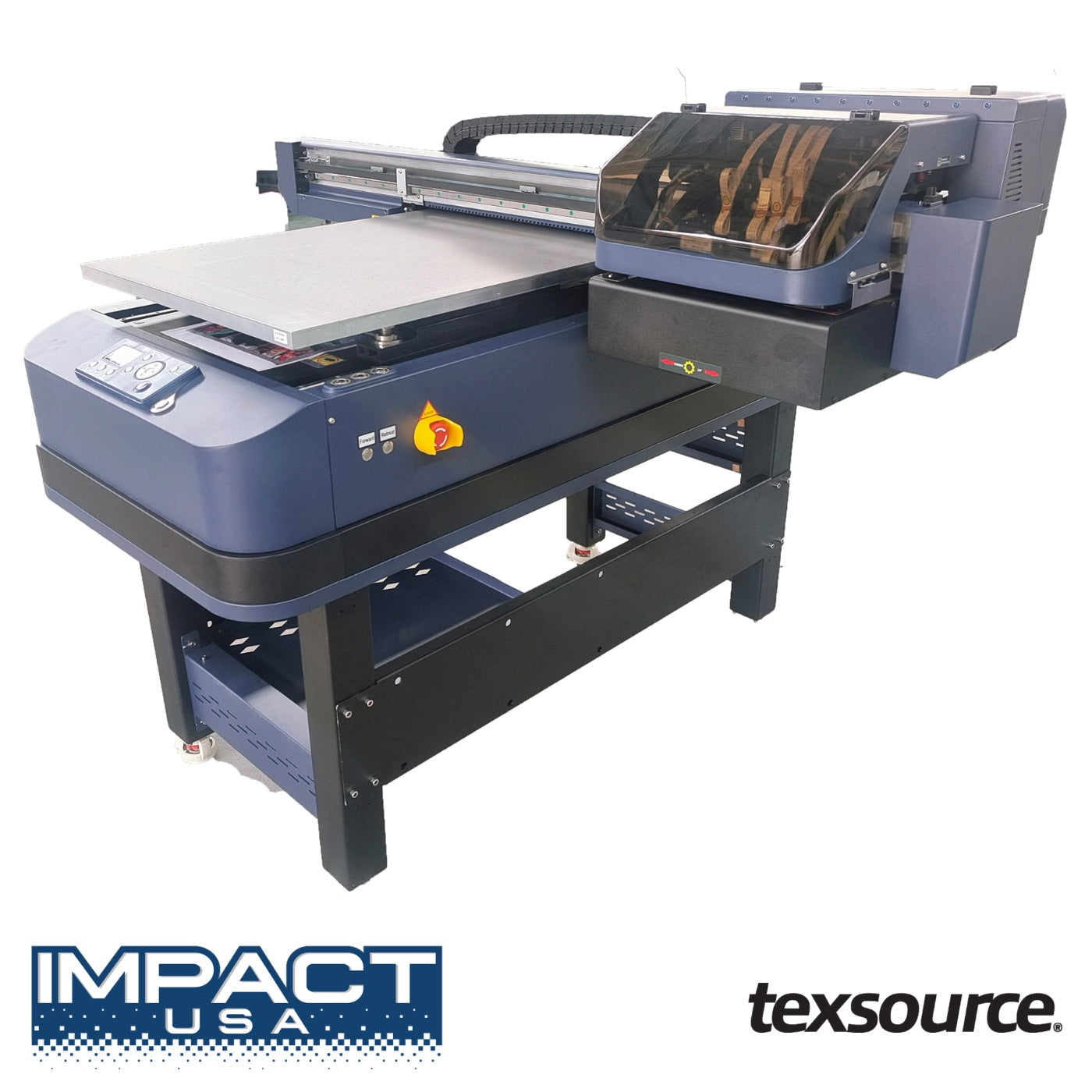

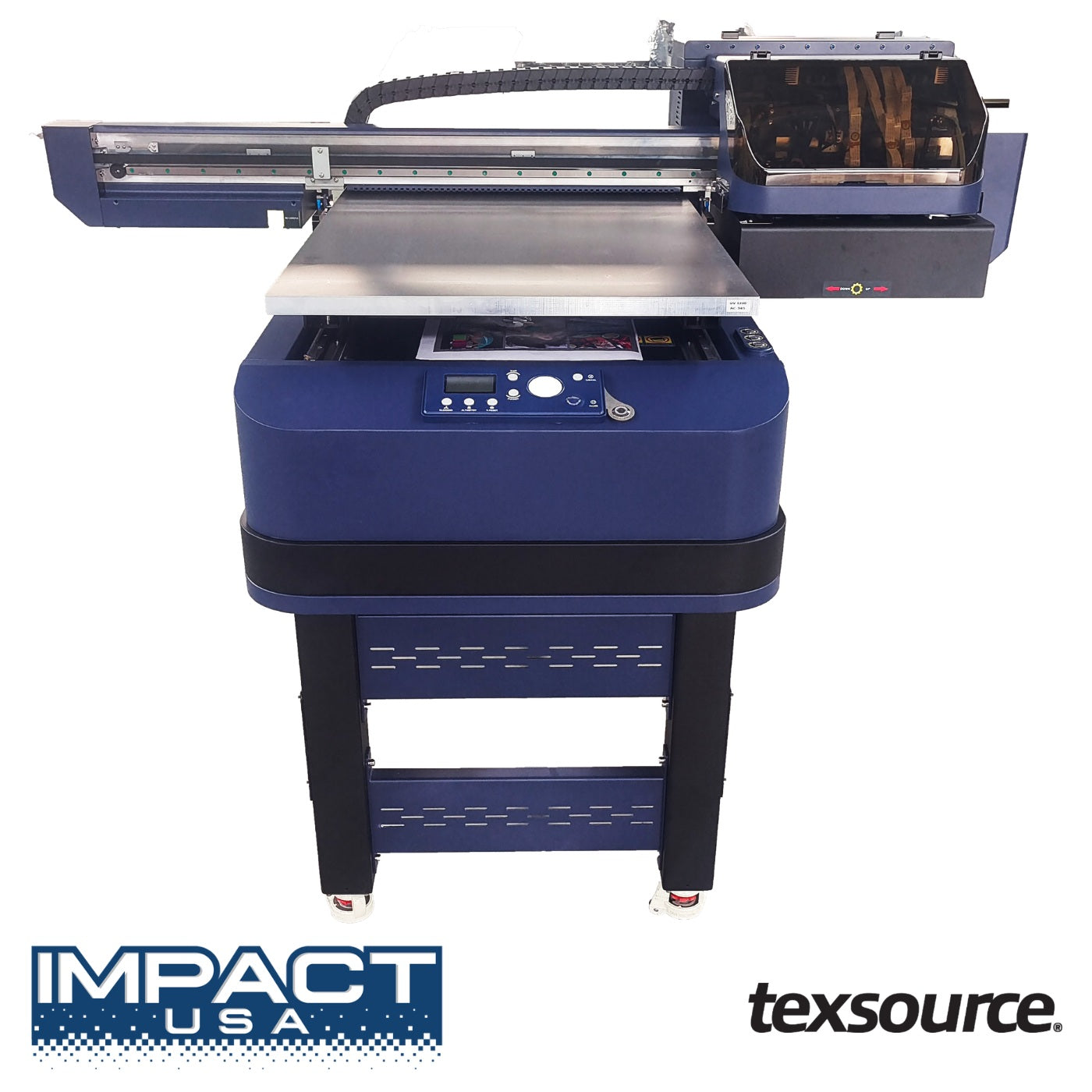

FEDAR 6090 Flatbed UV Printer

The UV-6090 isn't just a flatbed printer -- it's a business expansion tool. Whether you're producing premium silicone UV patches for headwear and apparel, custom signage, branded promotional products, or personalized gifts, this machine opens up revenue streams most shops haven't even tapped yet.

Powered by industrial Epson I3200 or I1600 printheads, the UV-6090 delivers rich, vibrant color, razor-sharp detail, and seamless gradients on virtually any surface. The optional varnish head lets you add glossy, matte, or textured finishes that make your products look and feel premium -- the kind of quality that commands higher margins.

Silicone UV Patches -- A Revenue Stream You're Missing One of the hottest applications in decorated apparel right now is silicone UV patches -- the 3D raised patches you see on premium hats, bags, and jackets. The UV-6090 produces them in-house, on demand, at a fraction of what you'd pay to outsource. Add custom patches to your service menu and watch your average order value climb. Print on Practically Any Surface Glass, metal, acrylic, leather, wood, PVC, plastics, crystal products, signage boards, and more -- if you can lay it flat, the UV-6090 can print on it.

Print Modes
 - CMYK + White (Dual-Head)
 - CMYK + White + Varnish (Triple-Head) ​

Curing System: LED-UV Max Print Area: 23.6" × 35.4" Max Production Speed: Up to 54 sq ft/hour Printheads: Epson I3200 / I1600 (2 or 3 heads)

Benefits of the Fedar UV 6090 System
 - Industrial-Grade Print Quality – Three Epson i3200-U1 UV printheads provide precise dot placement and consistent color output
 -  Instant LED UV Curing – Integrated UV lamps cure ink instantly during printing, eliminating dry time
 -  Wide Application Range – Print directly on glass, acrylic, metal, wood, PVC, leather, plastic, and more
 -  White & Varnish Capability – Create layered prints, spot gloss, matte effects, and textured finishes
 -  Built for Daily Production – Engineered for stable performance in professional print environments This system is ideal for businesses looking to expand into flatbed UV printing with dependable, repeatable results

FEATURES
 - 3 × Epson i3200-U1 UV Printheads – Industrial precision and durability
 -  LED UV Curing System – Instant curing with energy-efficient LEDs
 -  CMYK + White + Varnish Support – Premium finishes and effects
 -  Vacuum Flatbed Table – Holds materials securely during printing
 -  Rigid Media Compatibility – Supports a wide range of flat substrates
 -  Stable Frame Design – Reduced vibration for consistent quality
 - White ink circulation system to prevent sedimentation
 - Automatic cleaning routines to protect printheads
 - Stable ink delivery for long production runs
 - Designed to reduce downtime and maintenance interruptions

Designed for commercial environments, the UV 6090 combines LED UV curing, white ink support, and optional varnish printing to produce high-quality prints with strong adhesion and scratch resistance. Ideal for signage, promotional products, packaging samples, personalization, and rigid media printing

*NOTE - Some shipping, handling, or crating fees may apply to oversize products. Submit a quote request for a no-obligation turnkey price on delivery to your door.

IMPACT USA - Fedar 6090 Flatbed UV Printer

Specifications:

 - Print Head: EPSON I1600-U1 / I3200-U1 (Qnty: 2/3)

 - Print Speed: 4PASS: 12㎡/h 6PASS: 10㎡/h 8PASS: 6㎡/h

 - Ink Type: LED-UV Curing Ink

 - Print Color: CMYK+W(Double Heads) CMYK+W+V(Three Heads)

 - Print Size: 60*90cm

 - Resolution: 720*1200*3200DPI

 - Weight: G.W.: 280kg

 - Print Height: 0-13cm

 - Print Media: Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, etc.

 - Image Format: JPG, TIF, PDF, etc.

 - System Requirements: Windows 10, 11

 - Environment: Temp.: 15℃~30℃

 - RIP Software: Riin, Photoprint

 - Printer Size: 1750*1650*860mm

 - Power: 220V / 20A dedicated circuit for printer

Recommended supply items for this product will be available shortly.

Want to see more on the FEDAR 6090 Flatbed UV Printer?
