M&R ORBITER - Automatic DTF Direct-To-Film Transfer System
by M&R
SKU
Original price
$79,950.00
-
Original price
$79,950.00
Original price
$79,950.00
$79,950.00
-
$79,950.00
Current price
$79,950.00
As a leading distributor for M&R products, Texsource can give you the absolute best price, training, and support on all M&R ORBITER heat presses. Call or contact us today for a demo on the exact M&R products that best suit your business needs.
*product photos provided by manufacturer may not be exact configuration of the product listing and may also contain optional accessories. A crating and installation fee may be required for this product. Additional lead time may be required for this product.

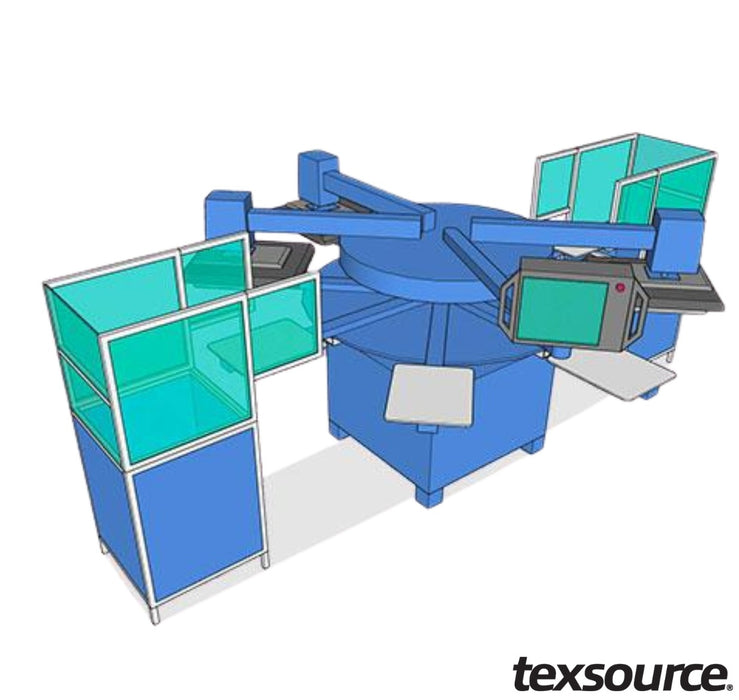

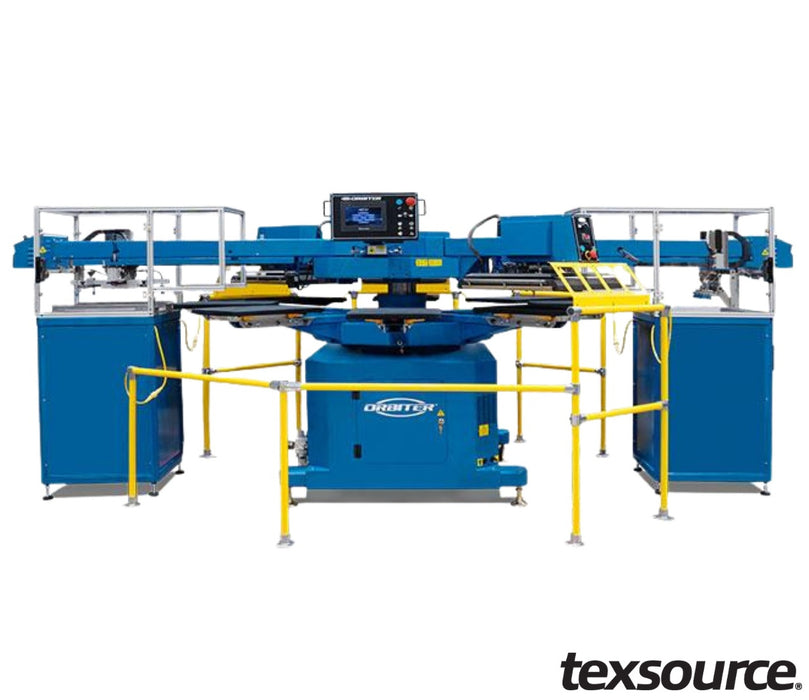

The M&R ORBITER™ Automatic Direct to Film (DTF) Application System is a versatile rotary heat transfer machine. The ORBITER is specifically engineered to support the M&R QUATRO™ DTF product line. The design encompasses 40 years of M&R carousel machine engineering with precision pressure and speed upgrades necessary to support optimal DTF transfer application. With a full-color touchscreen HMI, adjustable place and peel settings, and robust, reinforced construction, the ORBITER is adaptable to all your application requirements.
The ORBITER’s rotary indexing base splits the application time over multiple heat press platens to produce more than 360 transfers per hour under optimal conditions. This transforms passive “waiting” time into active pressing time. The ability to automatically load and unload transfers removes repetitive tasks associated with DTF transfer pressing. The speed increase dramatically outperforms the traditional single-platen heat press process. The ORBITER supports one piece flow and Just-in-Time manufacturing models.
The ORBITER can be used independently from a QUATRO as a standalone heat press solution or integrated into the QUATRO ecosystem to help achieve the most time- and labor-efficient DTF production environment.
KEY INNOVATIONS
- Over 360 transfers per hour with a single operator
- User Friendly Touchscreen Interface
- Automated Placement Station
- Automated Peel Station
- Reduced Defects
- Reduced Labor
- Post-Peel Heat Press Option Available
- Small Footprint - Fits Through 36" Doorway
STANDARD FEATURES
AUTOMATIC TAKEOFF
- Auto load and auto peel stations increase efficiency and eliminate non-value-added manual labor
CONTROL CENTER

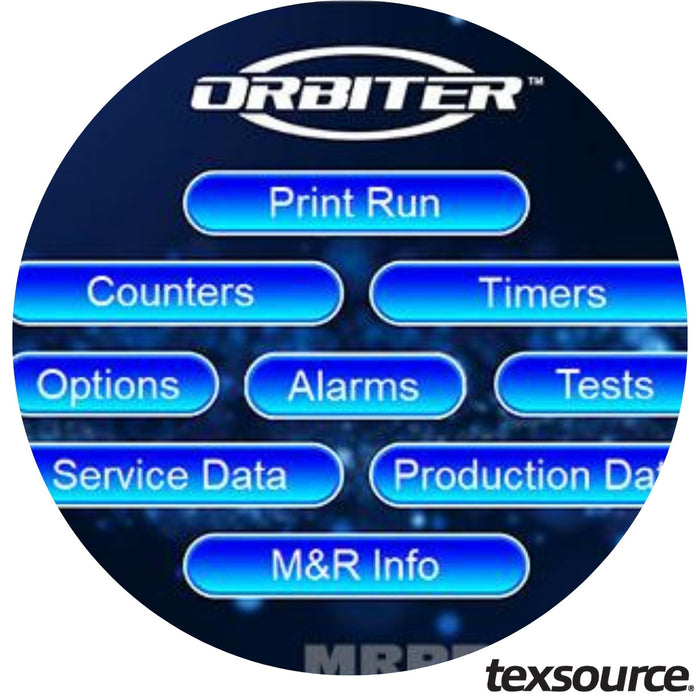

- Advanced touchscreen control panel
DESIGN & CONSTRUCTION
- Built of heavy-duty steel and premium components
- Designed to fit through a 92 cm (36") doorway
HEATER SYSTEM
- Multiple heat press platens produce more than 360 transfers per hour under optimal conditions
- Three heat presses including a post-peel heat press
WARRANTY, SERVICE AND SUPPORT
- One-year limited warranty
SPECIFICATIONS
- Air @ 6,9 bar (100 psi) - 143 l/min (5 cfm)
- Dimensions (L x W x H) - 391 x 262 x 158 cm (154" x 103" x 62")
- Electrical Requirements - 230 VAC, 3 ph, 33 A, 60 Hz, 13.1 kVA
400 VAC, 3 ph, 21 A, 50 Hz, 14.5 kVA - Shipping Weight - 1374 kg (3029 lb)
COMPLETE PRODUCT SPECIFICATIONS AVAILABE IN MANUFACTURER DOCUMENTATION
