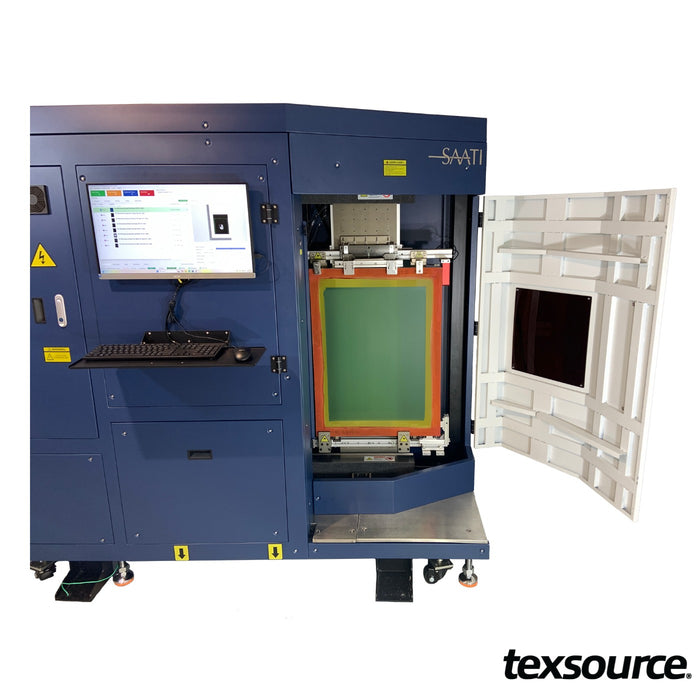

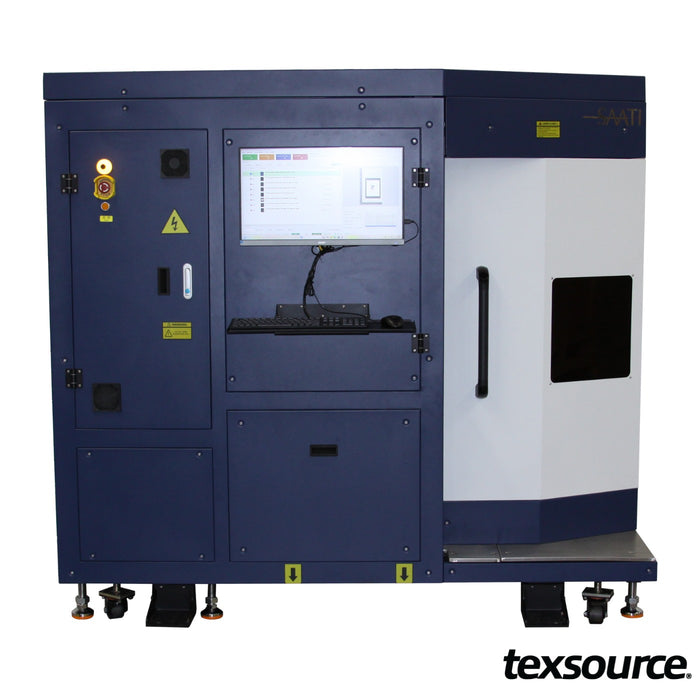

Self-contained, super high efficiency direct laser computer-to- screen imaging & exposure unit, operated by PC, with optional RIP.  Designed to efficiently image and expose one screen up to 640 x 920 mm | 25 x 36” without vacuum or film positives.

Intelligent software tools can analyze images and compensate pixel by pixel to ensure a more faithful image replication by the Planar Laser Array on press.

FEATURES

• Vertical glassless design with safety shutter
• Planar array of 64 lasers with resolution toggle: 1270 and 2540 DPI
• Rapidly and thoroughly cures all emulsions and stencil films including high density
• Easy to use software, compatible with many RIP programs, RIP can be provided as part of purchase
• Utilizes 1-bit TIFF file format
• Very high resolution CtS exposure
• Pneumatic frame clamping system compatible with both custom and major registration systems like MHM, Tri-Lock
• Upgraded encoder, drive and mechanical systems, for precise pixel placement with high-definition images
• Digitally process image files directly to screens, without film positives or consumables like ink or wax
• Low power consumption for minimized costs
• 10,000+ hour lamp life and easy, low cost maintenance

SPECIFICATIONS

• Maximum Image Size: 600 x 800 mm | 23.6 x 31.4”
• Maximum Frame Size: 640 x 920 mm | 25 x 36”
• Machine Dimensions: 2070 x 712 x 1880 mm | 81.5 x 28 x 74”
  - allow an additional 610 mm / 24” on the right side and 203.2
  mm / 8” in front for the screen chamber door to fully open
• Weight: 800 kg | 1763.7 lb
• Compatible with 220V (EMEA) or 110V (USA) input
• Requires compressed air for pneumatic clamps
  (90 PSI/6.205 Bar, less than 1 cfm)
• One Year Warranty
