Most shops have to choose between capabilities. The UVA3 gives you all of them. Flatbed printing for hard substrates, rotary printing for cylindrical objects, and UV DTF printing for transfers -- three production capabilities in one compact machine that fits on a workbench. If you're looking to add high-margin custom merchandise to your lineup without a massive equipment investment, this is your machine.

Powered by an Epson I3200 U1HD printhead and LED-UV curing technology, the UVA3 produces photo-quality output with rich color, razor-sharp detail, and stunning 3D varnish and embossed effects that make products look and feel genuinely premium. This isn't desktop-quality output dressed up with marketing language -- it's the same industrial Epson printhead technology found across the entire Fedar lineup.

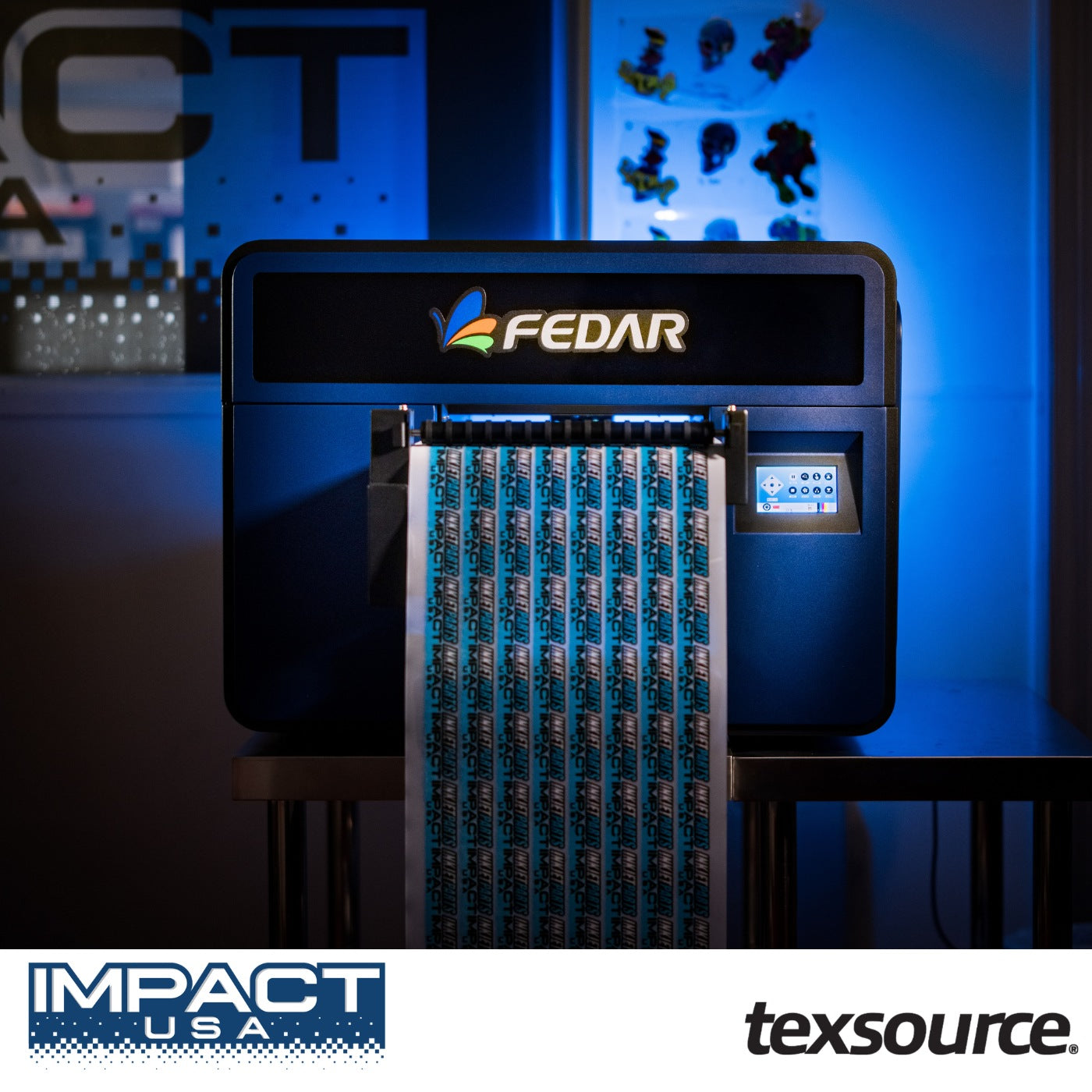

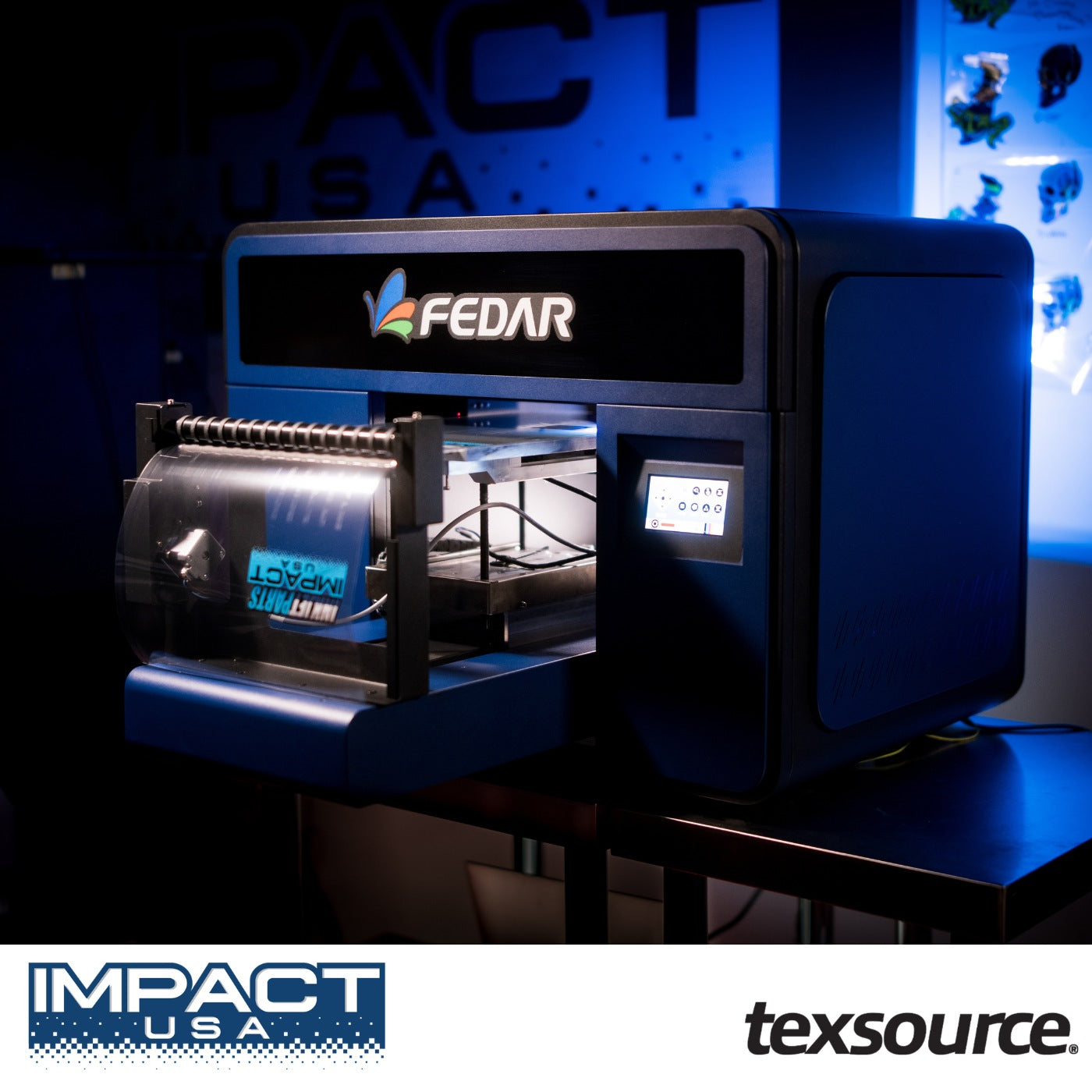

Three Ways to Print. One Machine. Flatbed Mode Print directly onto hard, flat substrates with a high-precision honeycomb aluminum platform engineered to within 0.004" flatness. Glass, acrylic, phone cases, puzzles, wood, hard plastics -- if it's flat and fits the bed, the UVA3 can print on it. Rotary Mode Full-surface printing on cylindrical objects using the included rotary attachment. Tumblers, bottles, cups, pens -- products your customers are already asking for. UV DTF Mode Print UV DTF transfers for application to virtually any surface. No heat press required. Perfect for items you can't print on directly.

Features:
 - Epson I3200 U1HD Printhead -- high-resolution, photo-quality output
 -  LED-UV curing system -- instant cure, no waiting, no smearing
 -  Lifting suction platform -- honeycomb aluminum, flatness within 0.004"
 -  Motor-driven lifting ink station -- protects nozzles and improves print precision
 -  Automatic white ink circulation -- prevents precipitation and clogging during and between print runs
 -  Intelligent ink supply system -- automatic circulation with low-ink alert so you never run dry mid-job
 -  CMYK + White + Varnish ink configuration -- full color range with specialty finish capability

Print Effects That Command Premium Pricing
 - 3D Varnish -- glossy, matte, or textured finishes with real visual depth on full or partial prints
 -  Embossed Effects -- raised texture that recreates brush strokes and adds a tactile, premium feel
 -  Spot Color with White Ink -- rich layering and image realism on dark or transparent substrates
 -  Variable Ink Drop Technology -- three ink drop sizes for photo-level detail, reduced graininess, and crisp text down to 2pt font size

What Can You Print On?
Phone cases, glass, acrylic, wood, leather, metal, puzzles, hard plastics, tumblers, bottles, cups, pens, promotional products, packaging, and virtually any hard substrate that fits the 11.7" x 16.5" print bed. ​

Print Size: 11.7" x 16.5" (A3+) Print Colors: CMYK + White + Varnish Curing System: LED-UV Printhead: Epson I3200 U1HD

*NOTE - Some shipping, handling, or crating fees may apply to oversize products. Submit a quote request for a no-obligation turnkey price on delivery to your door.  This listing includes the optional tracking camera.  Feel free to request a quote to have this optional product removed.

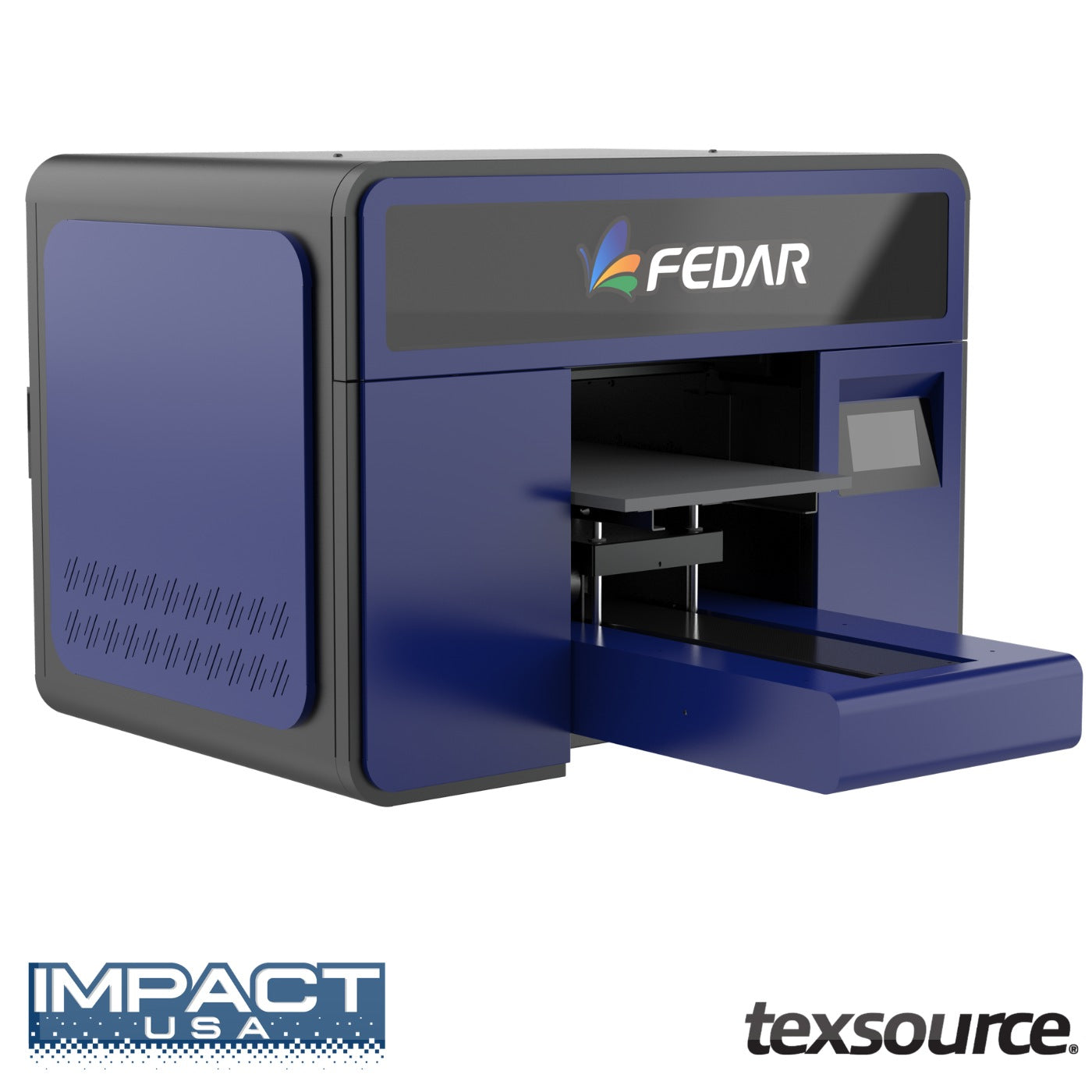

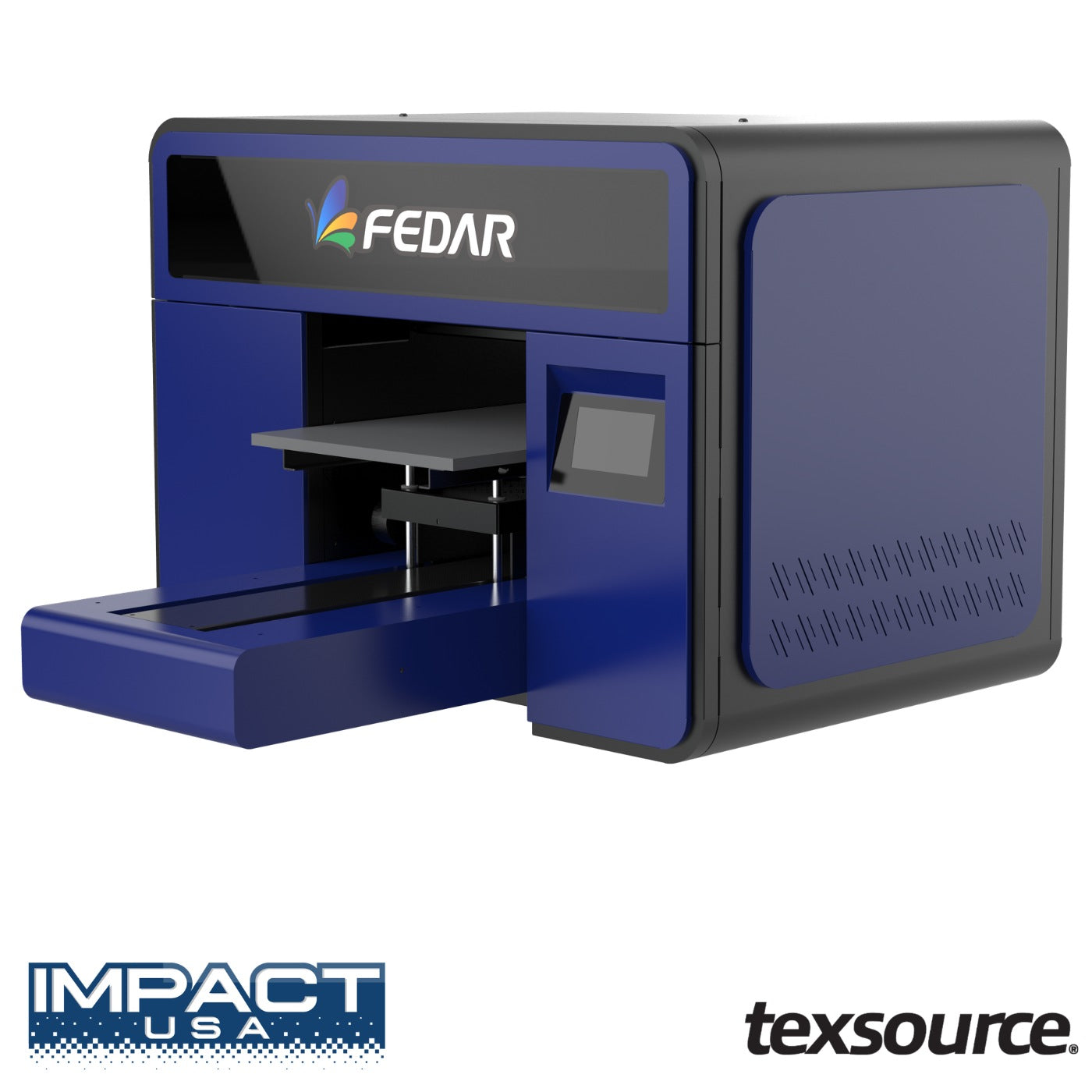

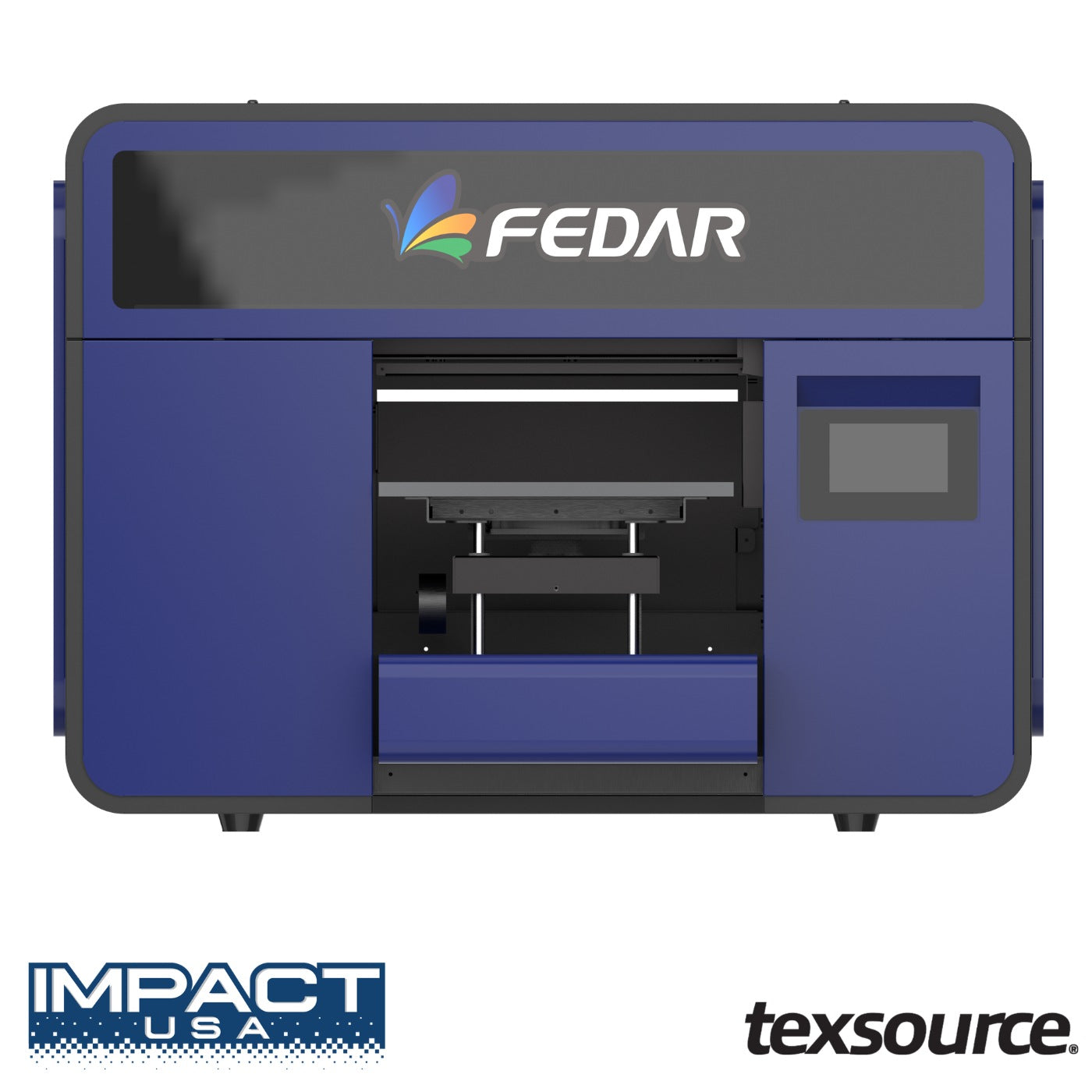

IMPACT USA - Fedar UV-A3 Inkjet UV Printer

Specifications:

 - Print Head: Epson i3200 (8) - U1HD Grey Scale Micro Piezo Printhead

 - Print Head Quantity: 1

 - Print Size: Flatbed: 420mm*297mm(L*W) RTR: 150mm*290mm(Diameter*W) Cylinder: 30-90mm*230mm(Diameter*W)

 - Print Speed: 0.28㎡/h~3㎡/h

 - Print Thickness: 1mm-90mm

 - Ink Type: Environment-friendly UV Curing Ink

 - Ink Color: Standard: C M Y K W Varnish, Optional: Y M C K Lc Lm+W

 - Control Software: Maintop, FlexiPRINT, Riin

 - Media Type: Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, etc.

 - Media Absorption System: Automatic Control

 - Print File Format: TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.

 - Power: 110V-220V 50HZ/60HZ/500W

 - Computer Configuration: Win10-11, 64 bit; Gigabit Ethernet Port

 - Working Environment: Temperature: 15℃-28℃，Humidity: 40%-60%

 - Weight: 80kg /150kg

 - Dimensions: 1100mmx920mmx620mm(L*W*H)

Recommended supply items for this product will be available shortly.
