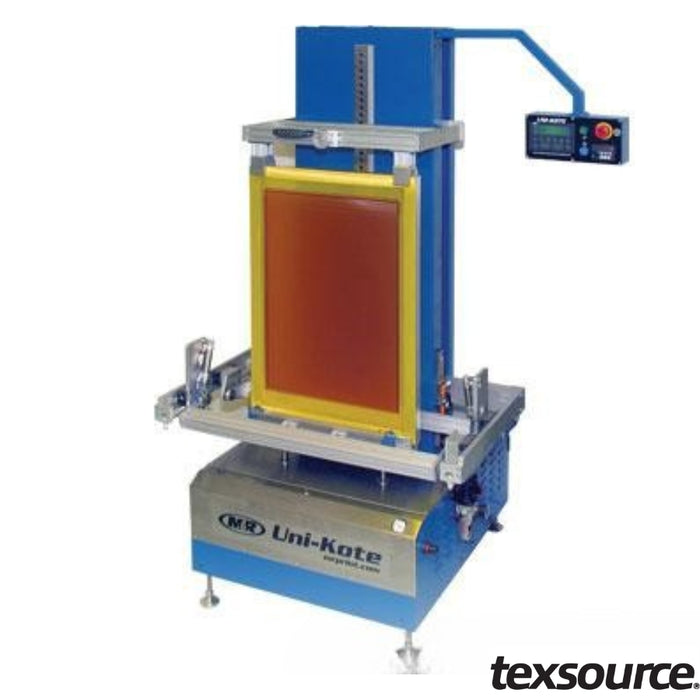

M&R UNI-KOTE Automatic Screen Coating Machine
by M&R
SKU MR-UNIKOTE
Original price
$25,040.00
-
Original price
$25,040.00
Original price
$25,040.00
$25,040.00
-
$25,040.00
Current price
$25,040.00
As a leading distributor for M&R products, Texsource can give you the absolute best price, training, and support on all M&R Automatic Screen Coating Machines. Call or contact us today for a demo on the exact M&R products that best suit your business needs.
*product photos provided by manufacturer may not be exact configuration of the product listing and may also contain optional accessories. A crating and installation fee may be required for this product. Additional lead time may be required for this product.
The Uni-Kote automatic screen coater from M&R brings automated efficiency and consistency to one of the most important steps in the screen printing process. Unlike manual coating the Uni-Kote will not vary in coating speed or pressure, giving you properly coated screens that lead to better image quality, ink deposit and detail in your prints.

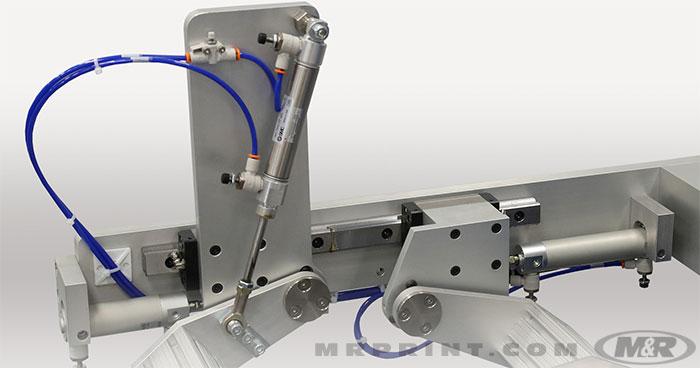

Job Recall™ allows operators to save settings for quick and easy recall when needed. Other features include tool free screen size adjustments, and quick-load coating troughs all designed for ease of use and efficient versatility. The precision machined steel chassis uses high quality linear bearings combined with a brushless electric drive system to provide smooth chatter-free carriage movement, while pneumatic pressure control and precision-machined coating troughs provide consistent uniform emulsion application.
Engineered for dependable performance and low maintenance the Uni-Kote is the low-cost way to automate your screen coating. M&R’s Uni-Kote automatic screen coater is CE Certified, UL Listed and backed by a one-year limited warranty.
- Coat up to 400 high-quality screens in 8 hours (Production rates can vary depending on screen size, coating speeds, and number of coats per side, your rate may be different.)
- Precision machining and high quality components ensure smooth uniform emulsion application

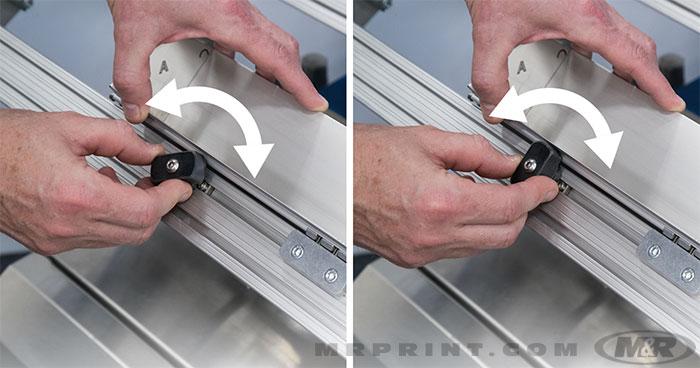

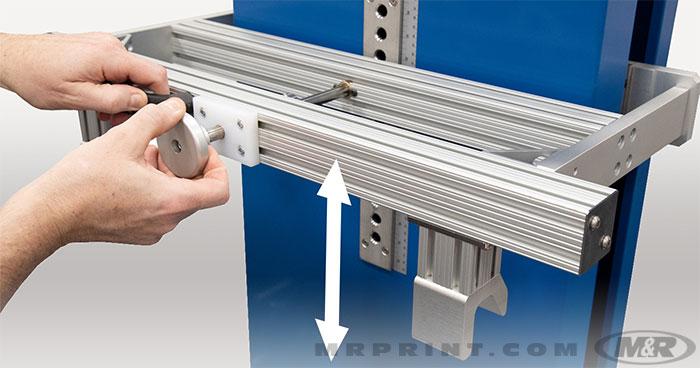

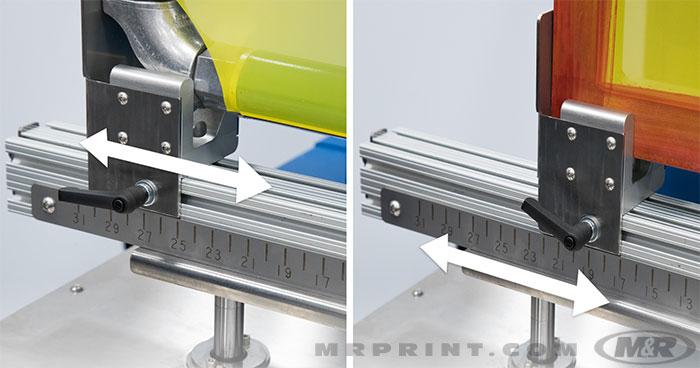

- Tool-free adjustable frame holders accommodate multiple screen sizes in seconds
STANDARD FEATURES
CERTIFICATION
- CE Certified: Built to specifications established by the European Committee for Standardization® (CE)
- UL Listed: Built to specifications established by Underwriters Laboratories® (UL)

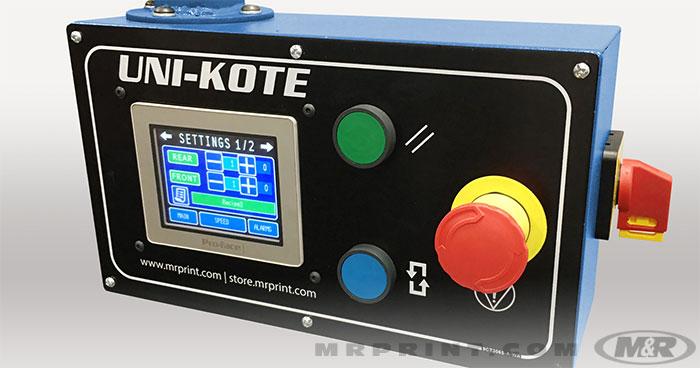

COLOR TOUCHSCREEN CONTROL CENTER
- Displays key operational information—including current settings, speeds, recipes, and diagnostics
- Icon based visuals for control functions
- Job Recall™ allows operators to store operational parameters under operator-chosen alphanumeric names—and recall those named settings later
DESIGN & CONSTRUCTION

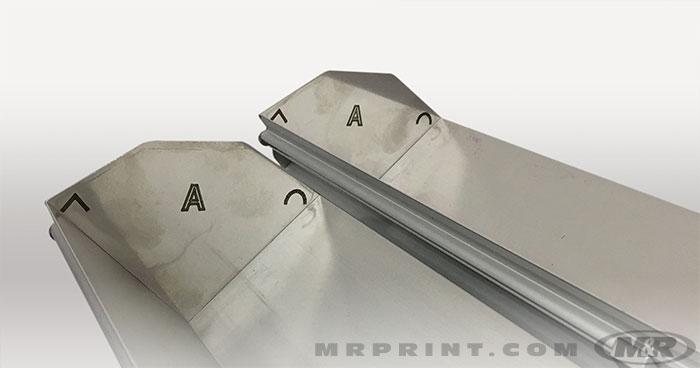

- Anodized aluminum coating troughs available in multiple widths
- High quality bearings and drive components for long life and smooth operation
- Stainless steel lower covers for ease of cleaning and maintenance
- Welded steel chassis, with critical working surfaces machined to exacting tolerances
EFFICIENCY
- Job Recall speeds parameter changes
- Quick-load troughs and tool-free adjustments make for quick setup and operation
HEAT CHAMBER
- Infrared radiant panel array
- Radiant panels are height adjustable
PRODUCTIVITY
- Coat up to 100 high-quality screens per hour
- Simultaneous dual-side coating further increases productivity
WARRANTY, SERVICE AND SUPPORT
- 24-hour hotline is staffed 365 days a year
- One-year limited warranty
SPECIFICATIONS
- Air @ 6,9 bar (100 psi) -
110 V, 1 ph, 15 A, 50/60 Hz, 1.15 kW
208/230 V, 1 ph, 7.9/7.2 A, 50 Hz, 1.15 kW -
Maximum Screen Frame Size -
79 x 109 x 3.2 cm (31” X 43” x 1.25”)
79 x 109 x 3.8 cm (31” X 43” x 1.50”)
79 x 107 x 4.5 cm (31” X 42” x 1.75”) -
Minimum Screen Frame Size -
25 x 61 x 3.2 cm (10” x 24” x 1.25”)
25 x 61 x 3.8 cm (10” x 24” x 1.50”)
25 x 61 x 4.5 cm (10” x 24” x 1.75”)
- Overall Size (W x D x H) -
135 x 79 x 181 cm (53” x 31” x 71.2”)
AVAILABLE PRODUCT OPTIONS
- Trough Size From 19" To 25"
- Trough Size From 26" To 36"
- Trough Size From 6" To 15"
- Uni Kote Trough 16"
- Uni Kote Trough 17"
- Uni Kote Trough 18"
COMPLETE PRODUCT SPECIFICATIONS AVAILABE IN MANUFACTURER DOCUMENTATION
